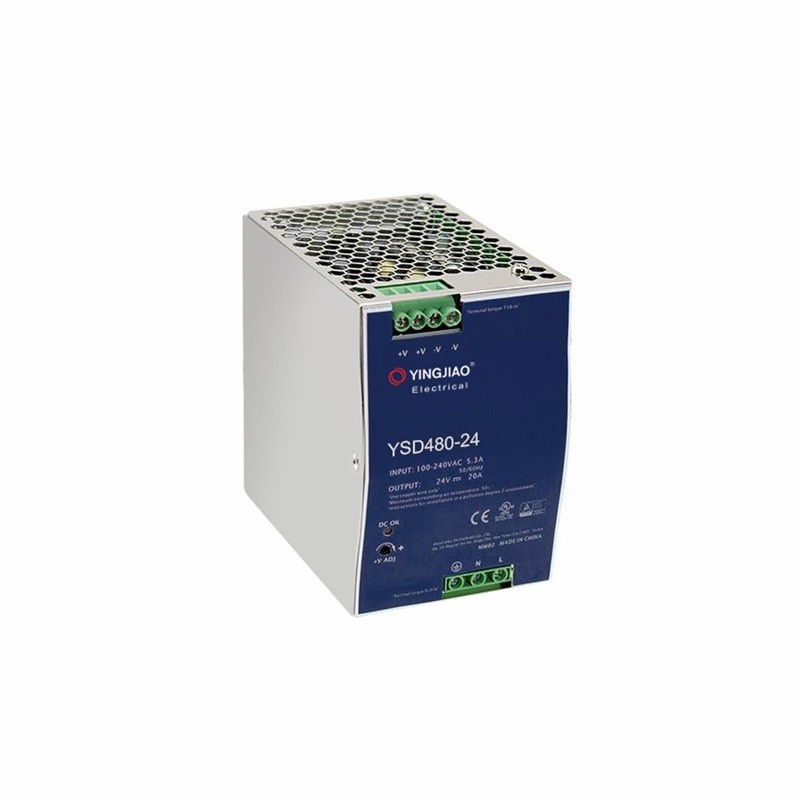

480W DIN RAIL Power Supply YSDN480

Item Code:YSDN480 Features:

Rated Power: 480W
Input: 100-240V AC, 50 / 60Hz
DC output Voltage adjustable
Built-in active PFC function
Can be installed on DIN rail TS-35 / 7.5 or 15
Protection: Short Circuit, OCP, OVP
Output: 12-55V

Description
Details

Model：	YSDN480
Power:	480W max.
Input：	85-264VAC 50/60Hz
Output Voltage:	24-48V
Output Current:	10-20A
Input current:	1.2A max.
Inrush Current:	50Amps max. at 230VAC/50Hz,full load
Leakage Current:	＜50μA
Energy Efficiency Level VI :	V
No Load Power Consumption ：	＜0.3W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-10°C-40°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-10℃ ~+80°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals:	CE,EMC,CB,RoHS,REACH
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3 years alternative
Dimension:	63125.5113.5mm
Weight:	800g
Packing:	10pcs/ctn4528.532CM

Model:	YSDN480-24020000	YSDN480-48005000
DC Voltage:	24V	48V
Rated Current:	20A	10A
Current Range:	0-20A	0-5A
Rated Power:	480W	480W
Ripple & Noise(max.):	240mV P-P	480mV P-P
Voltage Tolerance:	±5%
Line Regulation:	±3%	±3%
Load Regulation:	±5%	±5%
Efficiency:	87.00%	87.00%
Setup,Rise,Hold up time:	40ms/12ms at full load
