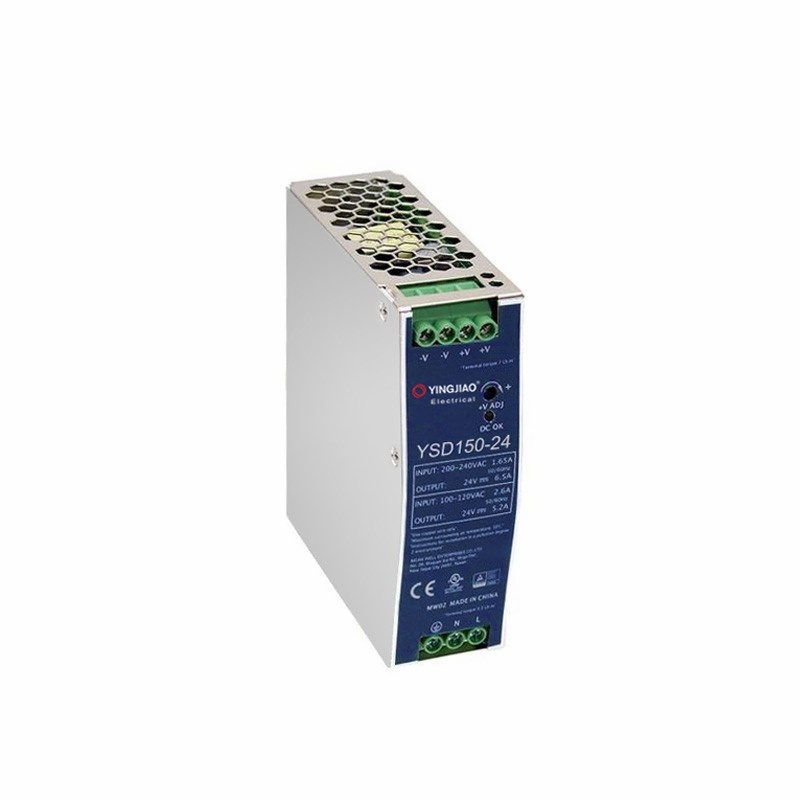

150W DIN RAIL Power Supply YSDN150

Item Code:YSDN150 Features:

Rated Power: 150W
Input: 90-264V AC, 50 / 60Hz
DC output Voltage adjustable
Built-in active PFC function
Can be installed on DIN rail TS-35 / 7.5 or 15
Protection: Short Circuit, OCP, OVP
Output: 24-28V

Description
Details

Model：	YSDN150
Power:	150W max.
Input：	90-264VAC 50/60Hz
Output Voltage:	24-48V
Output Current:	5-20A
Input current:	1.2A max.
Inrush Current:	50Amps max. at 230VAC/50Hz,full load
Leakage Current:	＜50μA
Energy Efficiency Level VI :	V
No Load Power Consumption ：	＜0.3W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-10°C-40°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	-10℃ ~+80°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

Certificates and approvals:	CE,EMC,CB,RoHS,REACH
MTBF:	100000 hours minimum at full load at 25℃ ambient
Life:	3 years alternative
Dimension:	41125114mm
Weight:	600g
Packing:	20pcs/ctn
