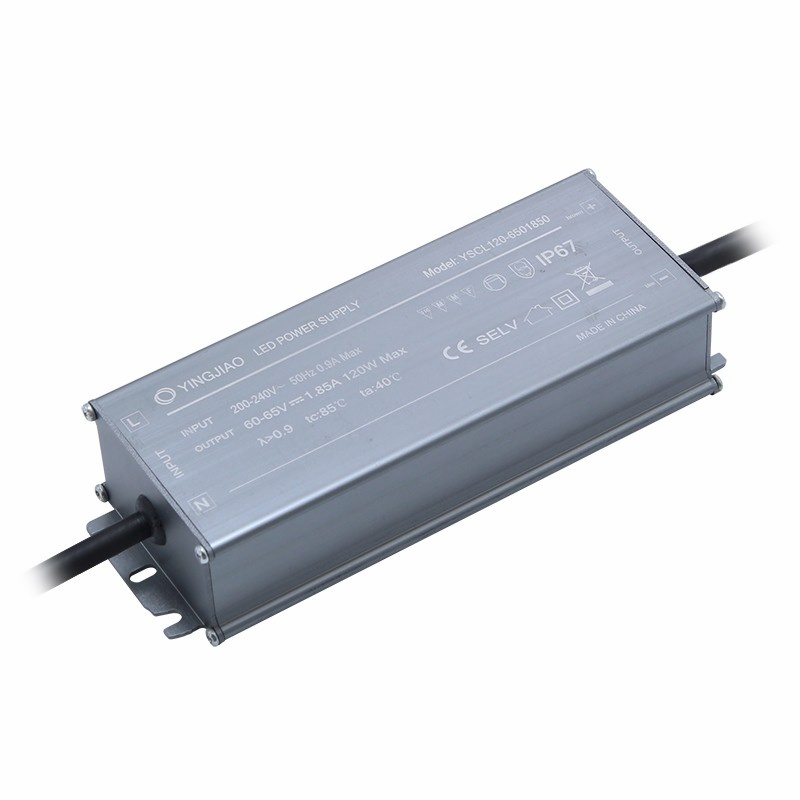

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP67 protection rating

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL250-12	200W	220-240V AC	12V	20.8A	≥0.95	±5%	90%	210x70x44mm
YSCL250-24	200W	220-240V AC	24V	10.4A	≥0.95	±5%	92%	210x70x44mm
YSCL250-36	200W	220-240V AC	36V	10.9A	≥0.95	±5%	92%	210x70x44mm
YSCL250-48	200W	220-240V AC	48V	5.2A	≥0.95	±5%	92%	210x70x44mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL250-12	150W	90-265V AC	12V	16.6A	≥0.95	±5%	90%	210x70x44mm
YSCL250-24	150W	90-265V AC	24V	8.33A	≥0.95	±5%	92%	210x70x44mm
YSCL250-36	150W	90-265V AC	36V	5.5A	≥0.95	±5%	92%	210x70x44mm
YSCL250-48	150W	90-265V AC	48V	4.16A	≥0.95	±5%	92%	210x70x44mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL250-2100	150W	90-265V AC	1050mA	119V	≥0.95	±5%	92%	210x70x44mm
YSCL250-3600	150W	90-265V AC	1400mA	69V	≥0.95	±5%	92%	210x70x44mm
YSCL250-4000	150W	90-265V AC	2100mA	59.5V	≥0.95	±5%	92%	210x70x44mm
YSCL150-7200	150W	90-265V AC	3600mA	34.7V	≥0.95	±5%	92%	210x70x44mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL250-2100	150W	90-265V AC	1050mA	142V	≥0.95	±5%	92%	210x70x44mm
YSCL250-3600	150W	90-265V AC	1400mA	95V	≥0.95	±5%	92%	210x70x44mm
YSCL250-4000	150W	90-265V AC	2100mA	55V	≥0.95	±5%	92%	210x70x44mm
YSCL150-7200	150W	90-265V AC	3600mA	47V	≥0.95	±5%	92%	210x70x44mm
