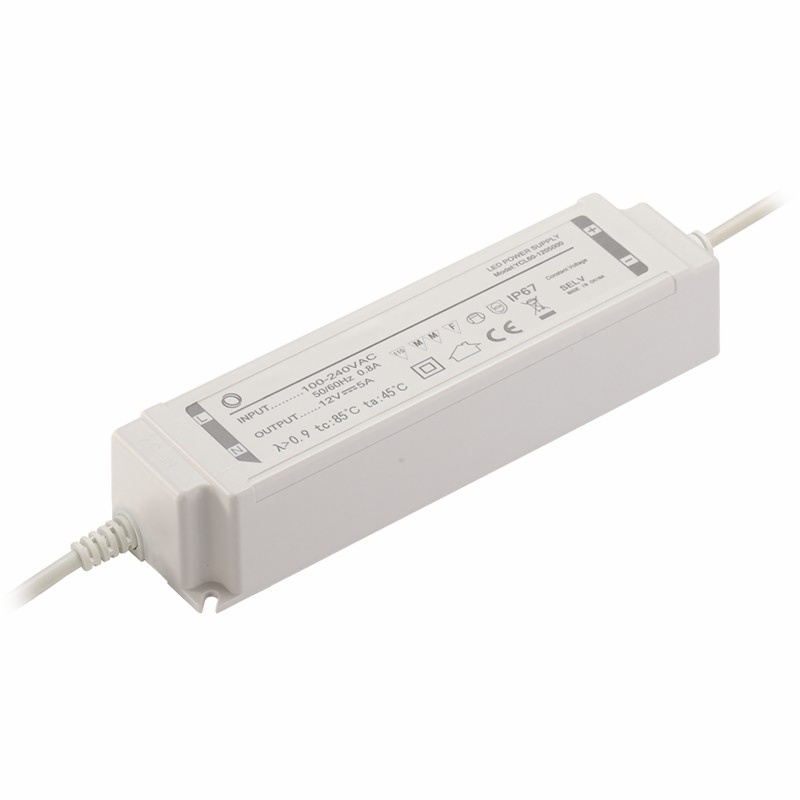

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Dimming available

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YCL60-12	60W	220-240V AC	12V	5A	≥0.9	±5%	88%	163x43x33mm
YCL60-24	60W	220-240V AC	24V	2.5A	≥0.9	±5%	90%	163x43x33mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YCL60-12	50W	90-265V AC	12V	4.2A	≥0.9	±5%	88%	163x43x33mm
YCL60-24	50W	90-265V AC	24V	2.1A	≥0.9	±5%	90%	163x43x33mm
YCL60-36	50W	90-265V AC	36V	1.4A	≥0.9	±5%	90%	163x43x33mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Current Tolerance	Efficiency	Dimension(LxWxH)
YCL60-700	60W	220-240V AC	700mA	85V	≥0.9	±5%	90%	163x43x33mm
YCL60-1050	60W	220-240V AC	1050mA	57V	≥0.9	±5%	90%	163x43x33mm
YCL60-1400	60W	220-240V AC	1400mA	42V	≥0.9	±5%	90%	163x43x33mm
YCL60-2100	60W	220-240V AC	2100mA	28V	≥0.9	±5%	90%	163x43x33mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Current Tolerance	Efficiency	Dimension(LxWxH)
YCL60-700	50W	90-265V AC	500mA	71V	≥0.9	±5%	90%	163x43x33mm
YCL60-1050	50W	90-265V AC	700mA	47V	≥0.9	±5%	90%	163x43x33mm
YCL60-1400	50W	90-265V AC	1050mA	35V	≥0.9	±5%	90%	163x43x33mm
YCL60-1400	50W	90-265V AC	1400mA	23V	≥0.9	±5%	90%	163x43x33mm
