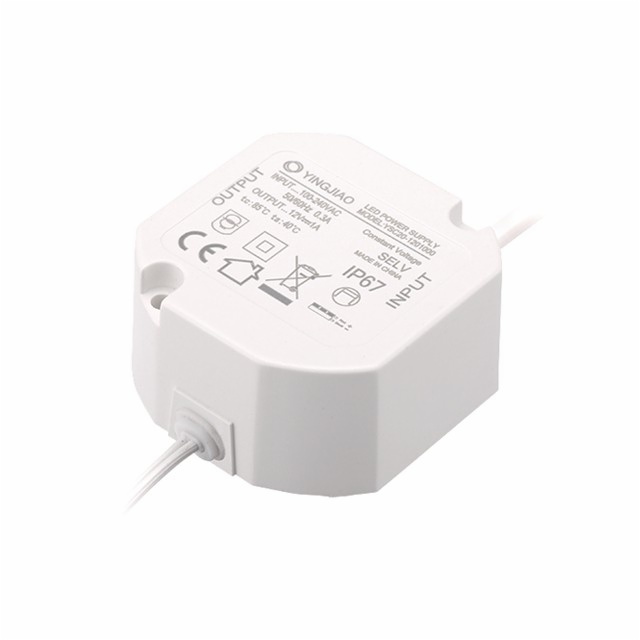

YCL20R Series YCL20R

Item Code:YCL20R Features:

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions



  • Description
  • Details

Constant Voltage

Model
Power (max.)
Input Voltage
Output Voltage
 PF
Voltage Tolerance
Riple(P-P)
Efficiency
Dimension(LxWxH)
YCL20-V
20W
220-240V AC
12V/24V
 >0.5
±5%
＜1%
85%
64x47.5x28mm
YCL20R-V
20W
220-240V AC
12V/24V
 >0.5
±5%
＜1%
86%
59x59x28mm


Constant Current

Model
Power (max.)
Input Voltage
Output Current
(max.)
 PF
Voltage Tolerance
Current Riple&
Noise (p-p)
Efficiency
Dimension(LxWxH)
YCL20-C
12W
90-265V AC
700mA
 >0.5
±5%
＜35mA
85%
64x47.5x28mm
YCL20R-C
12W
90-265V AC
700mA
 >0.5
±5%
＜35mA
86%
59x59x28mm
