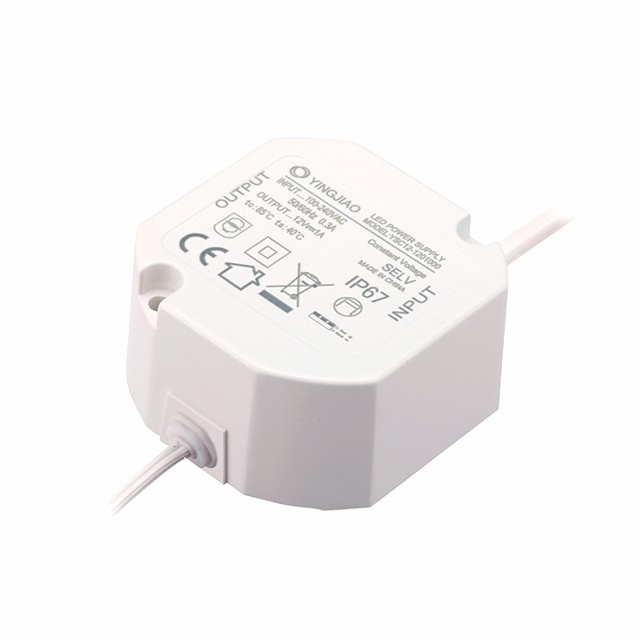

YCL12R Series YCL12R

Item Code:YCL12R Features:

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- IP67 Protection rating



  • Description
  • Details

Constant Voltage

Model
Power (max.)
Input Voltage
Output Voltage
Voltage Tolerance
Riple(P-P)
Efficiency
Dimension(LxWxH)
YCL12-V
12W
220-240V AC
12V/24V
±5%
＜1%
82%
56x39x26mm
YCL12R-V
12W
220-240V AC
12V/24V
±5%
＜1%
82%
50x50x25mm


Constant Current

Model
Power (max.)
Input Voltage
Output Current
(max.)
Voltage Tolerance
Current Riple&
Noise (p-p)
Efficiency
Dimension(LxWxH)
YCL12-V
12W
90-265V AC
700mA
±5%
＜1%
82%
56x39x26mm
YCL12R-V
12W
90-265V AC
700mA
±5%
＜1%
82%
50x50x25mm
