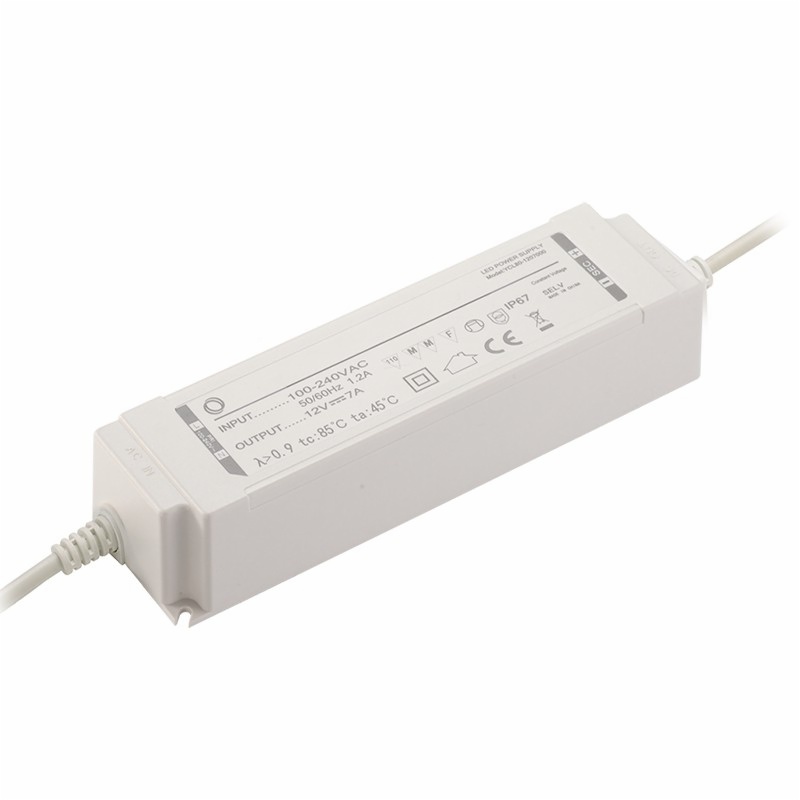

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Dimming available

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YCL80-12	80W	220-240V AC	12V	6.66A	≥0.9	±5%	90%	190x52x37mm
YCL80-24	80W	220-240V AC	24V	3.33A	≥0.9	±5%	92%	190x52x37mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YCL80-12	72W	90-265V AC	12V	6A	≥0.9	±5%	90%	190x52x37mm
YCL80-24	72W	90-265V AC	24V	3A	≥0.9	±5%	92%	190x52x37mm
YCL80-36	72W	90-265V AC	36V	2A	≥0.9	±5%	92%	190x52x37mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Current Tolerance	Efficiency	Dimension(LxWxH)
YCL80-1050	80W	220-240V AC	1050mA	76V	≥0.9	±5%	90%	190x52x37mm
YCL80-1400	80W	220-240V AC	1400mA	57V	≥0.9	±5%	90%	190x52x37mm
YCL80-2100	80W	220-240V AC	2100mA	38V	≥0.9	±5%	90%	190x52x37mm
YCL80-4200	80W	220-240V AC	4200mA	19V	≥0.9	±5%	90%	190x52x37mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Current Tolerance	Efficiency	Dimension(LxWxH)
YCL80-1050	72W	90-265V AC	1050mA	68V	≥0.9	±5%	90%	190x52x37mm
YCL80-1400	72W	90-265V AC	1400mA	51V	≥0.9	±5%	90%	190x52x37mm
YCL80-2100	72W	90-265V AC	2100mA	34V	≥0.9	±5%	90%	190x52x37mm
YCL80-4200	72W	90-265V AC	4200mA	17V	≥0.9	±5%	90%	190x52x37mm
