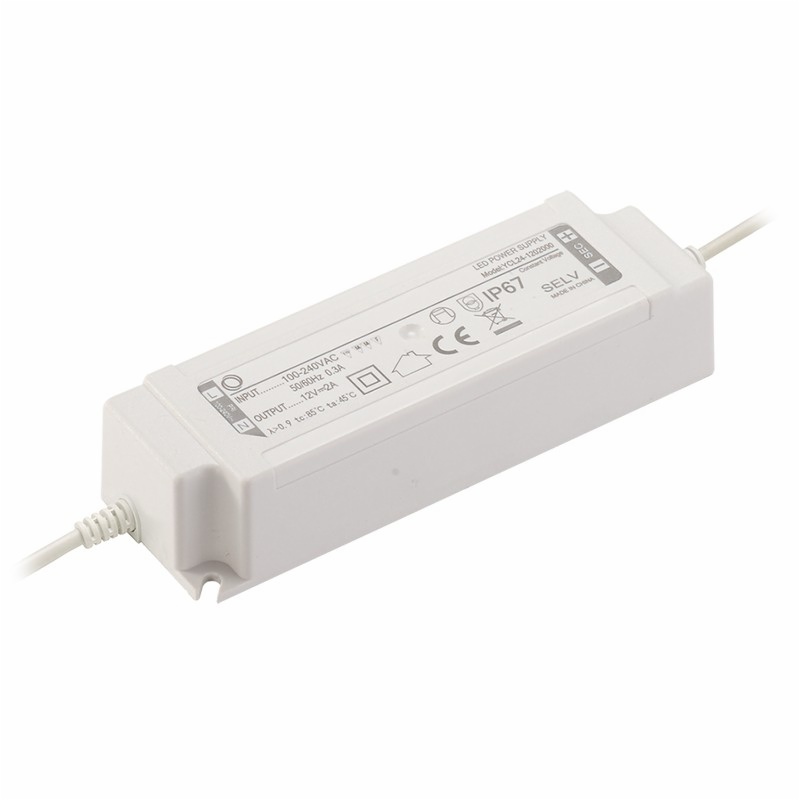

Waterproof LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- IP67 Protection rating

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	Voltage Tolerance	Ripple(P-P)	Efficiency	Dimension(LxWxH)
YCL24-12	24W	220-240V AC	12V	2A	±5%	<1%	85%	118x35x26mm
YCL24-24	24W	220-240V AC	24V	1A	±5%	<1%	86%	118x35x26mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	Voltage Tolerance	Ripple(P-P)	Efficiency	Dimension(LxWxH)
YCL24-12	24W	90-265V AC	12V	2A	±5%	<1%	85%	118x35x26mm
YCL24-24	24W	90-265V AC	24V	1A	±5%	<1%	86%	118x35x26mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Current Tolerance	Ripple(P-P)	Efficiency	Dimension(LxWxH)
YCL24-350	24W	220-240V AC	350mA	68V	±5%	<1%	92%	118x35x26mm
YCL24-500	24W	220-240V AC	500mA	48V	±5%	<1%	92%	118x35x26mm
YCL24-700	24W	220-240V AC	700mA	34V	±5%	<1%	92%	118x35x26mm
YCL24-1050	24W	220-240V AC	1050mA	22V	±5%	<1%	92%	118x35x26mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Current Tolerance	Ripple(P-P)	Efficiency	Dimension(LxWxH)
YCL24-1050	24W	90-265V AC	350mA	68V	±5%	<1%	92%	118x35x26mm
YCL24-1400	24W	90-265V AC	500mA	48V	±5%	<1%	92%	118x35x26mm
YCL24-2100	24W	90-265V AC	700mA	34V	±5%	<1%	92%	118x35x26mm
YCL24-2400	24W	90-265V AC	1050mA	22V	±5%	<1%	92%	118x35x26mm
