1. Supports all IEEE802.3at- and IEEE 802.3af- compliant POE devices( Wireless LAN access points and bridges, VOIP( voice over Internet Protocol) telephones, IP surveillance cameras)
2. Automatic Detection and Protection of non-standard Ethernet terminals
3. Compact design fits easily in WLAN Access point and IP cameras installations
|

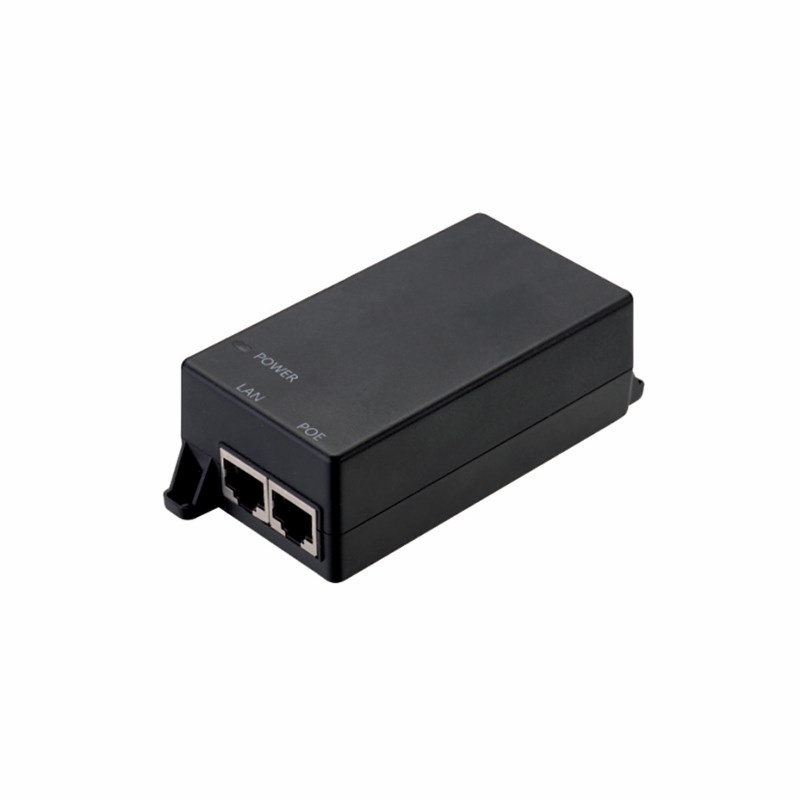

Model： |
YSP32 |
|
Power: |
30Wmax. |
|
Input： |
100-240VAC 50/60Hz |
|
Output Voltage: |
12V-55V |
|
Output Current: |
0.01-2A |
|
Input current: |
0.8A max. |
|
Inrush Current: |
50Amps max. at 230VAC/50Hz,full load |
|
Leakage Current: |
0.25mA Max. at 264VAC input |
|
Energy Efficiency Level VI : |
DOE VI |
|
No Load Power Consumption ： |
0.075W |
|
Data Rate: ： |
10/100/1000Mbps |
|
LED Indicator: |
AC power, POE active |
|
Output Connectors |
RJ45(data+power) |
|
Interface |
1 " data" in RJ45 Ethernet port
1 " data+power" output RJ45 Ethernet port
1 AC input power socket for external |
|
Protections： |
Short Circuit /Over Current /Over Voltage |
|
Short Circuit Protection (SCP)： |
Protection to Zero Voltage |
|
Over Voltage Protection (OVP): |
≤Vout*150% |
|
Over Current Protection (OCP): |
110%-180% |
|
Operating Ambient Temperature.: |
-20°C-45°C |
|
Operating Humidity： |
Maximum 90%, Non-condensing |
|
Storage Temperature |
20℃ ~+70°C |
|
Storage Humidity |
Maximum 90%, Non-condensing |
|
Compliance |
IEEE802.3at/af (POE), CE, RoHS, Reach |
|
Application: |
IPPhones,Wireless Networks Access Points, IP print servers, Blue tooth access points, IP Cameras, UPS, Switch, Smart door systerm and more. |
|
MTBF: |
100000 hours minimum at full load at 25℃ ambient |
|
Life: |
3 -5years alternative |
|
Dimension: |
88*56*33mm |
|
Weight: |
135g |
|
Packing: |
20PCS/CTN,40*30*20cm |
