MODEL DETAIL SPEC.
|

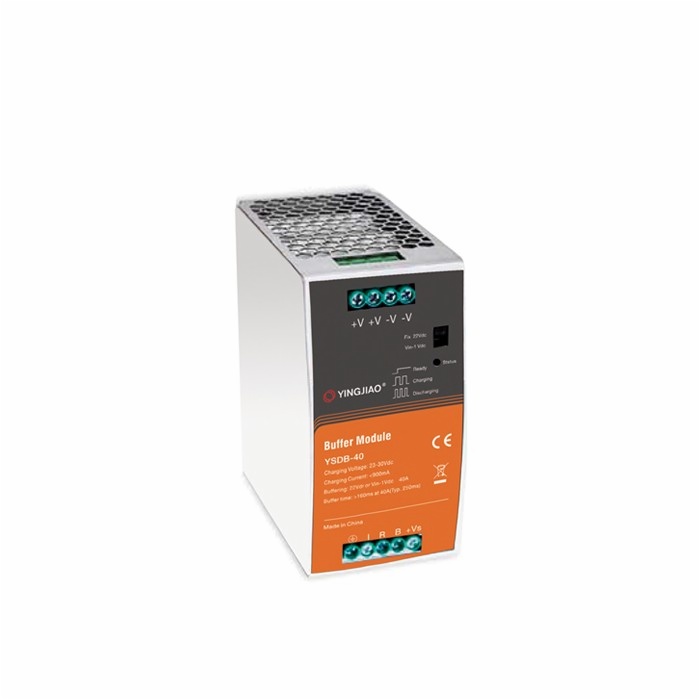

YSDB40-24
|
|
CHARGING
MODE
|
DC NORMAL OPERATING VOLTAGE:
|
24Vdc
|
|
CHARGING VOLTAGE:
|
23~30Vdc
|
|
CHARGING CURRENT:
|
900m Max
|
|
CURRENT CONSUMPTION AT STANDBY:
|
100mA Max
|
|
CHARGING TIME:
|
25s Typ.
|
|
35s Max
|
|
BUFFER
MODE
|
DC NORMAL VOLTAGE:
|
22Vdc/Vin-1Vdc
|
|
DC VOLTAGE RANGE:
|
22-29Vdc
|
|
OUTPUT CURRENT (max.):
|
40A
|
|
BUFFER TIME:
(Refer to Buffering
Curve at 22Vdc)
|
Output current
|
40A
|
20A
|
0.1A
|
|
Typ.
|
250ms
|
500ms
|
62s
|
|
Min
|
160ms
|
320ms
|
42s
|
|
RIPPLE & NOISE (max.)
|
350mVp-p
|
|
PROTECTION
|
OVER VOLTAGE:
|
31~37 5V only,shut down o p voltage
|
|
OVER LOAD:
|
105% ~125% rated output power at buffer mode
|
|
Protection type Shut down o/p voltage re power on to recover
|
|
SHORT CIRCUIT：
|
Protection type Shut down o/p voltage re power on to recover
|
|
TVS FOR SIGNALS (max.)：
|
35V
|
|
REVERSE POLARITY PROTECTION:
|
By internal MOSFET no damage recovers automatically after fault condition removed
|
|
FUNCTION
|
SELECTABLE BY SWITCH:
|
Fix 22Vdc(Default)
|
Buffering starts if terminal voltage falls below 22Vdc
|
|
Vin-1Vdc
|
Buffering starts if terminal voltage is decreased by > 1Vdc
|
|
CONTROL：
|
Inhibit ( I)
|
+Vs - V(I) ＜6Vdc: Buffer module ON; Vs - V(I) 10Vdc: Buffer module OFF
|
|
35Vdc /4mA Max
|
|
SIGNALS：
|
Ready(R)
|
Charged ready: V(R)>+Vs - 2Vdc; Unready: V(R)<1Vdc
|
|
Buffering (B)
|
35Vdc /10mA Max.
|
|
Buffering: V(B)>+Vs - 2Vdc; Other mode: V(B)<1Vdc
|
|
Supply Voltage(+Vs)
|
35Vdc /10mA Max.
|
|
LED STATUS DISPLAY
|
10~ 35Vdc /10mA(Connected to +V or external voltage)
|
|
LED STATUS DISPLAY
|
ON
|
Ready
|
|
OFF
|
Discharged
|
|
Flashing
|
1Hz
|
Charging
|
|
10Hz
|
Buffering
|
|
PARALLEL CONNECTION
|
Refer to Typical Application Notes(Page 6)
|
|
ENVIRONMENTAL |
WORKING TEMP: |
-20℃ to75℃,Refer to Derating Curve |
|
STORAGE TEMP: |
25℃ to 80℃ |
|
WORKING HUMIDITY: |
5% ~ 95% RH Non-Condensing |
|
SHOCK TEST: |
IEC60068-2-27,30G (300m/S²) for a duration of time per direction,2 times in total |
|
TEMP. COEFFICIENT: |
±℃ ℃ 0.03%/ (0 ~ 75 ) |
|
VIBRATION: |
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes;
Mounting clip: Compliance to IEC60068-2-6
|
|
PROTECTION |
SAFETY STANDARDS: |
IEC62368-1,UL62368-1 approved |
|
WITHSTAND VOLTAGE: |
IP/OP KV c; Signals- KV c |
|
ISOLATION RESISTANCE: |
IP/OP-FG Signals-FG >100M Ohms / 500Vdc / 25 / 70% RH |
|
EMC EMISSION: |
BS EN/EN55032 Class B， |
|
EMC IMMUNITY: |
BS EN/EN61000-4-2 Level 4, 15KV air ; Level 3, 8KV contact; criteria A
BS EN/EN61000-4-3 Level 3, 10V/m ; criteria A
BS EN/EN61000-4-4 Level 3, 2KV ; criteria A
BS EN/EN61000-4-5 Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A
BS EN/EN61000-4-6 Level 3, 10V ; criteria A
BS EN/EN61000-4-8 Level 4, 30A/m ; criteria A |
|
OTHERS |
MTBF: |
164 84K hrs min. MIL-HDBK-217F (25 ℃) ; 513.46K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃ ) |
|
1 97K hrs min. MIL-HDBK-217F （℃） 255.89K hrs min. Telcordia TR/SR-332 (Bellcore) (40℃) |
|
DIMENSION: |
63*125*115mm (W*H*D) |
|
PACKING: |
1.062Kg; 12pcs/12.8Kg/0.74CUFT |
